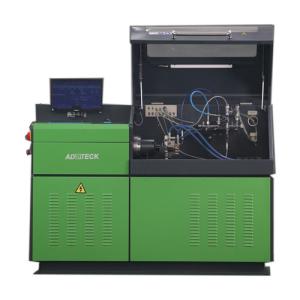

ADMTECK ADM8719
18.5KW, 2000BAR,common rail system test bench, for the testing of different common rail injectors and pumps, Compressor Cooling method
Technical Specifiion:
| 1. Power | 18.5Kw |
| 2. Rated Voltage | 220V/380V/415V |
| 3. Rated Voltage | 50/60HZ |
| 4. Cylinders | 6 / 12 |
| 5. Speed Range | 0—4000rpm |
| 6. Backflow pressure control range | 0—3 bar |
| 7. Temperature Control Range | 42℃ ,Accuracy:±2℃ |
| 8. Feed Volume Measurement Range | 0----45L/H |
| 9. Return Volume Measurement Range | 0---400L/H |
| 10. Max pressure | 2000 bar |
Cooling Method: Compressor Cooling
Cooling Capacity: 5000KAL
Functions:
Common rail pumps test&common rail injectors test:
1. Can drive different kinds of high-pressure pumps like BOSCH CP1/CP2/CP3,DELPHI CRSP,DENSO
HP3/HP4,SIEMENS DCP and DENSO HP0(optional).
2. Test the flow control valve of the common rail pumps.
3. Common rail injector test.
4. It can flush the injector with high pressure before testing.
5. Test the sealing of the CR injectors,Piezo injector, the injection flow volume under full-loaded, emission point, idling and the pre-injection, also back flow volume.
Color: green / blue/ yellow or as customer request
